UP-8022 Adhesive Testing Equipment High Speed Peel Strength Tester Angle 90° 180° Adjustable

  • 1
  • 2

MOQ : 1 Unit

Price : Negotiable

Brand Name : YOUBI

Model Number : UP-8022

Certification : CE,ISO

Place of Origin : CHINA

Payment Terms : D/P,T/T,Western Union,Paypal,

Supply Ability : 30 Unit/month

Delivery Time : 5-15 work days

Packaging Details : Professional export packing

Product name : Peel Strength Tester

Model NO. : UP-8022

Angle : 90°, 180° adjustable

Measurement Speed : 100-30000mm/Min Adjustable

Measurement Accuracy : ±0.5%.

Force Resolution : 1/500,000

Effective Stroke : 500mm

Service Support : OEM ODM

Applications : Adhesive,Tape,Plastic, Ceramic, Acrylic

Contact Now

UP-8022 High Speed Peel and Adhesion Strength Tester Angle 90° 180° Adjustable
Product Overview

High-speed peel tester designed for tensile strength, peel strength, deformation rate, breaking force, peeling force, opening force, thrust and other performance tests of plastic film, composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber and other products.

Features an adjustable angle test piece fixing plate with customizable sensor height and angle for peel tests at various angles, compliant with PSTC, ASTM, TLMI, FINAT and AFERA specifications.

Application Areas
  • Tape
  • Automotive
  • Ceramics
  • Composite materials
  • Construction
  • Food and medical equipment
  • Metal
  • Paper
  • Packaging
  • Rubber
  • Textiles
  • Wood
  • Communications
  • Various special-shaped materials
Applicable Standards
  • PSTC: 101 (A, B, C, D, E, F), 4, 15, 55
  • ASTM D 3330
  • GB/2792
  • TLMI: L-IA1, L-IA2, L-IA3
  • AFERA: 4001 P11
  • FINAT: FTM 1-6, 10, 11
Key Features
  • Angle 90°, 180° adjustable
  • Speed 100mm-30000mm/min adjustable
  • High-frequency acquisition rate software for enhanced test accuracy
Technical Specifications
Capacity Selection 10N, 20N, 50N, 100N, 200N, 500N (select one group)
Control Mode Full computer control with Window mode working platform, USB2.0 serial port connection, multiple language support, curve analysis, database export, test report output, and variable speed switching
Angle Adjustment 45°, 90°, 135°, 180° and other multi-angle measurements
Force Unit N, kN, gf, kgf, lbf, kP
Length Unit mm, cm, Inch
Stress Unit Pa, Kpa, MPa
Force Resolution 1/500,000
Measurement Accuracy ±0.5%
Measurement Speed 100-30000mm/min adjustable
Effective Stroke 500mm
Width of Test Piece 50mm
Stop Mode Upper and lower limit safety setting, test piece breakpoint sensing
Result Output Computer output
Motor Drive Delta servo motor + Delta servo driver
Machine Transmission Ball screw + linear guide
Machine Power 400W
Machine Size 1363mm (W) × 420mm (D) × 850mm (H)
Power Supply 220V 50Hz
Standard Configuration One set of fixtures, one power cord, and one instruction manual

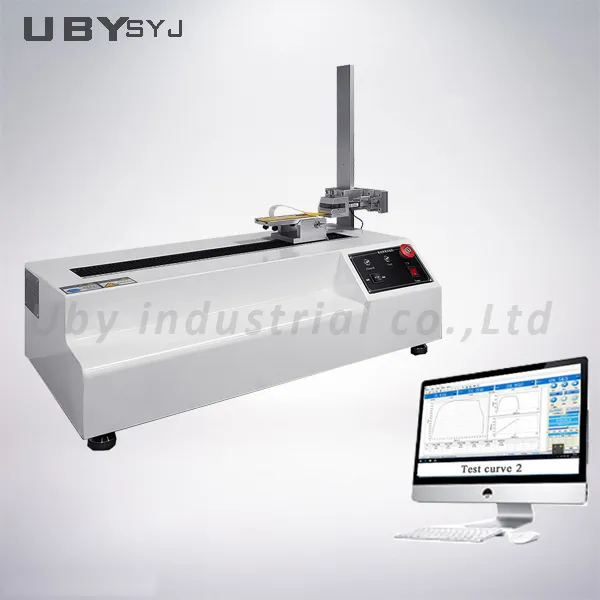

Product Images
UP-8022 Adhesive Testing Equipment High Speed Peel Strength Tester Angle 90° 180° Adjustable UP-8022 Adhesive Testing Equipment High Speed Peel Strength Tester Angle 90° 180° Adjustable UP-8022 Adhesive Testing Equipment High Speed Peel Strength Tester Angle 90° 180° Adjustable
Our Service

We offer comprehensive Consultative Selling services throughout the entire business process:

  • Customer Inquiry: Technical requirements discussion, product recommendations, and competitive pricing
  • Custom Specifications: Detailed drawings, reference photos, and final solution confirmation
  • Production & Delivery: Quality-controlled manufacturing, progress updates, calibration services, and timely shipping
  • Installation & Support: Field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. For sea transportation, we extend an additional 2 months. Technical support is available via email or video chat with solutions provided within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority scheduling.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.

How can I install and use the machine?

We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect the power cable to begin use. On-site installation assistance is available when necessary.
